Snow Chest Freezer (Flat Glass Lid Series)

     Commercial Refrigerator ---    Chest Freezer Range    ---

Previous ‹‹ » Next

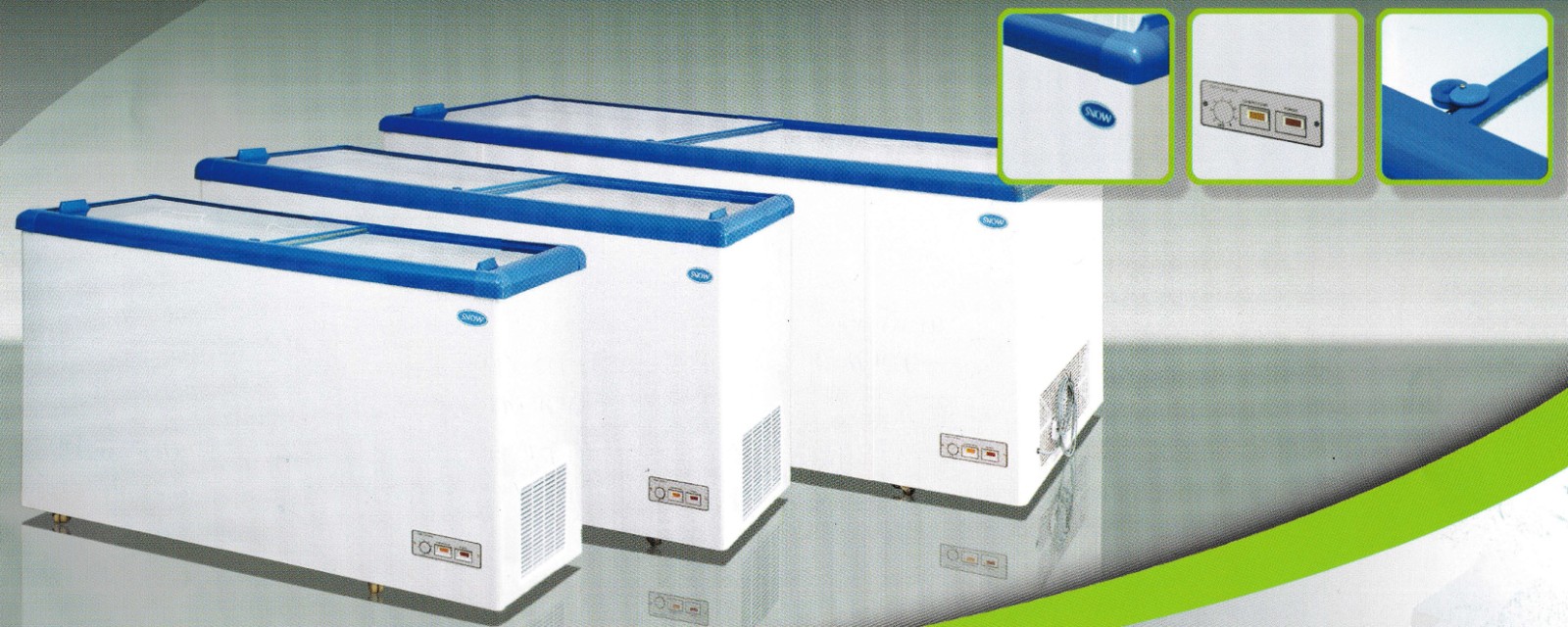

Snow Chest Freezer (Flat Glass Lid Series)

LY450GL
Dimensions (mm)
External: 1329W x 662D x 865H
Internal: 1200W x 530D x 703H
Capacity
Total: 420L
Effective: 360L
Power
Consumption: 4.0kWh/24h (24h at 30°C ambient)
Compressor: 1/3hp
Temperature range at 30°C ambient
-18°C – -26°C
Weight
Net: 75kg
Gross: 91kg
Door Type
Flat Glass Sliding Lid
Color
White
Outer Panel & Interior Cabinet
Mild steel and galvanised steel sheet with epoxy powder coating
Evaporator & Condenser
Zink coated bundy tube
Insulation
Polyurethane foam, 60mm thick (CFC Free)
38mm thick for cooler
Refrigerant
R 134a (CFC Free)
Power Source
220–240v, single phase 50Hz

LY600GL
Dimensions (mm)
External: 1659W x 662D x 865H
Internal: 1350W x 530D x 703H
Capacity
Total: 540L
Effective: 460L
Power
Consumption: 4.4kWh/24h (24h at 30°C ambient)
Compressor: 1/3hp
Temperature range at 30°C ambient
-18°C – -26°C
Weight
Net: 87kg
Gross: 109kg
Door Type
Flat Glass Sliding Lid
Color
White
Outer Panel & Interior Cabinet
Mild steel and galvanised steel sheet with epoxy powder coating
Evaporator & Condenser
Zink coated bundy tube
Insulation
Polyurethane foam, 60mm thick (CFC Free)
38mm thick for cooler
Refrigerant
R 134a (CFC Free)
Power Source
220–240v, single phase 50Hz

LY750GL
Dimensions (mm)
External: 2094W x 662D x 865H
Internal: 1966W x 530D x 703H
Capacity
Total: 710L
Effective: 600L
Power
Consumption: 5.3kWh/24h (24h at 30°C ambient)
Compressor: 3/8hp
Temperature range at 30°C ambient
-18°C – -26°C
Weight
Net: 112kg
Gross: 137kg
Door Type
Flat Glass Sliding Lid
Color
White
Outer Panel & Interior Cabinet
Mild steel and galvanised steel sheet with epoxy powder coating
Evaporator & Condenser
Zink coated bundy tube
Insulation
Polyurethane foam, 60mm thick (CFC Free)
38mm thick for cooler
Refrigerant
R 134a (CFC Free)
Power Source
220–240v, single phase 50Hz
