Snow Chest Freezer (Flat Glass Slanting Sliding Lid Series)

     Commercial Refrigerator ---    Chest Freezer Range    ---

Previous ‹‹ » Next

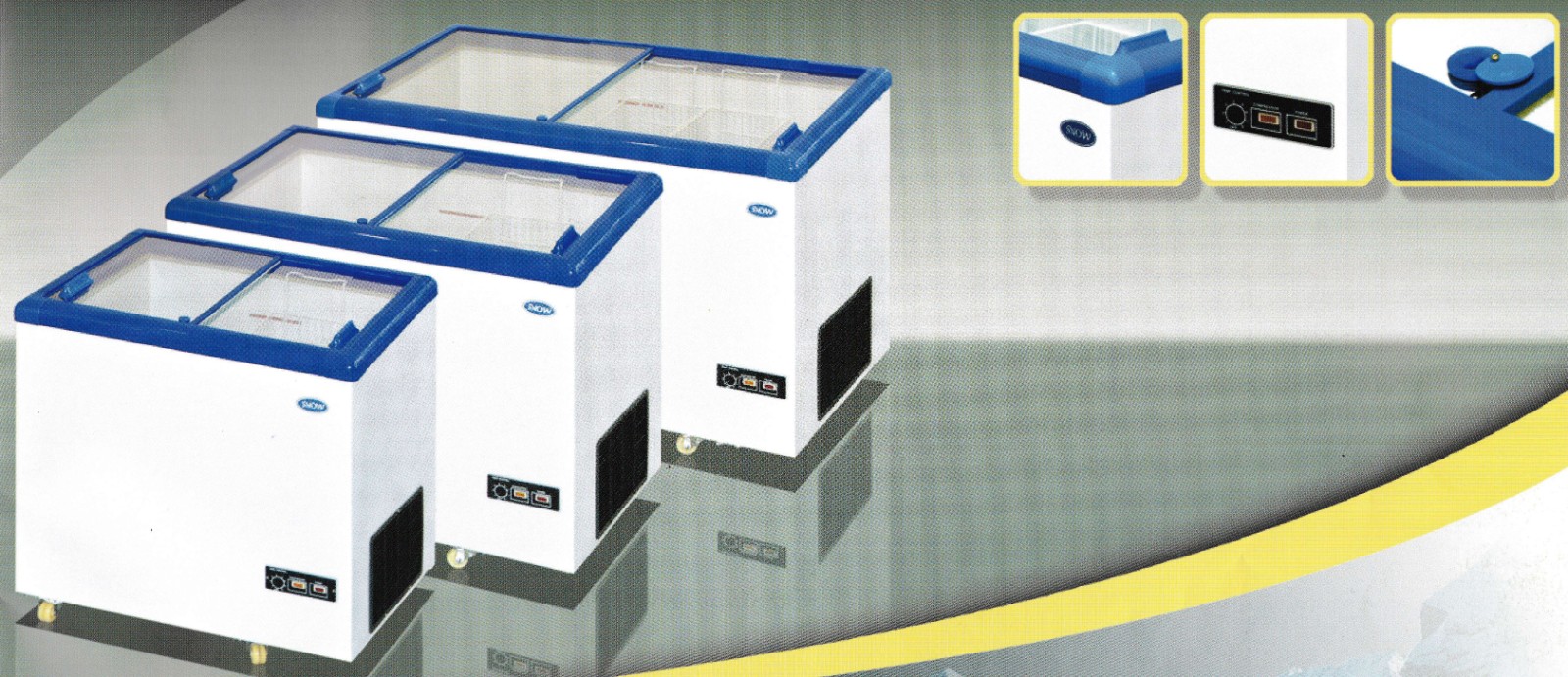

Snow Chest Freezer (Flat Glass Slanting Sliding Lid Series)

LY250GTS
Dimensions (mm)
External: 827W x 623D x 895H (825H1)
Internal: 695W x 491D x 723H (666H1)
Capacity
Total: 205L
Effective: 175L
Power
Input Power: 150W
Operating Current: 1.3A
Consumption: 2.8kWh/24h (24h at 30°C ambient)
Compressor: 1/5hp
Temperature range at 30°C ambient
-18°C – -26°C
Weight
Net: 48kg
Gross: 58kg
Door Type
Slanting Flat Glass Lid
Color
White
Outer Panel & Interior Cabinet
Mild steel and galvanised steel sheet with epoxy powder coating
Evaporator & Condenser
Zink coated bundy tube
Insulation
Polyurethane foam, 60mm thick (Cyclopentene - CFC Free)
38mm thick for cooler
Refrigerant
R 134a (CFC Free)
Power Source
220–240v, single phase 50Hz

LY350GTS
Dimensions (mm)
External: 1052W x 662D x 895H (825H1)
Internal: 920W x 530D x 723H (666H1)
Capacity
Total: 300L
Effective: 255L
Power
Input Power: 180W
Operating Current: 1.6A
Consumption: 3.7kWh/24h (24h at 30°C ambient)
Compressor: 1/4hp
Temperature range at 30°C ambient
-18°C – -26°C
Weight
Net: 59kg
Gross: 71kg
Door Type
Slanting Flat Glass Lid
Color
White
Outer Panel & Interior Cabinet
Mild steel and galvanised steel sheet with epoxy powder coating
Evaporator & Condenser
Zink coated bundy tube
Insulation
Polyurethane foam, 60mm thick (Cyclopentene - CFC Free)
38mm thick for cooler
Refrigerant
R 134a (CFC Free)
Power Source
220–240v, single phase 50Hz

LY450GTS
Dimensions (mm)
External: 1332W x 695D x 895H (825H1)
Internal: 1200W x 563D x 723H (666H1)
Capacity
Total: 430L
Effective: 370L
Power
Input Power: 190W
Operating Current: 1.8A
Consumption: 3.9kWh/24h (24h at 30°C ambient)
Compressor: 1/3hp
Temperature range at 30°C ambient
-18°C – -26°C
Weight
Net: 71kg
Gross: 87kg
Door Type
Slanting Flat Glass Lid
Color
White
Outer Panel & Interior Cabinet
Mild steel and galvanised steel sheet with epoxy powder coating
Evaporator & Condenser
Zink coated bundy tube
Insulation
Polyurethane foam, 60mm thick (Cyclopentene - CFC Free)
38mm thick for cooler
Refrigerant
R 134a (CFC Free)
Power Source
220–240v, single phase 50Hz
